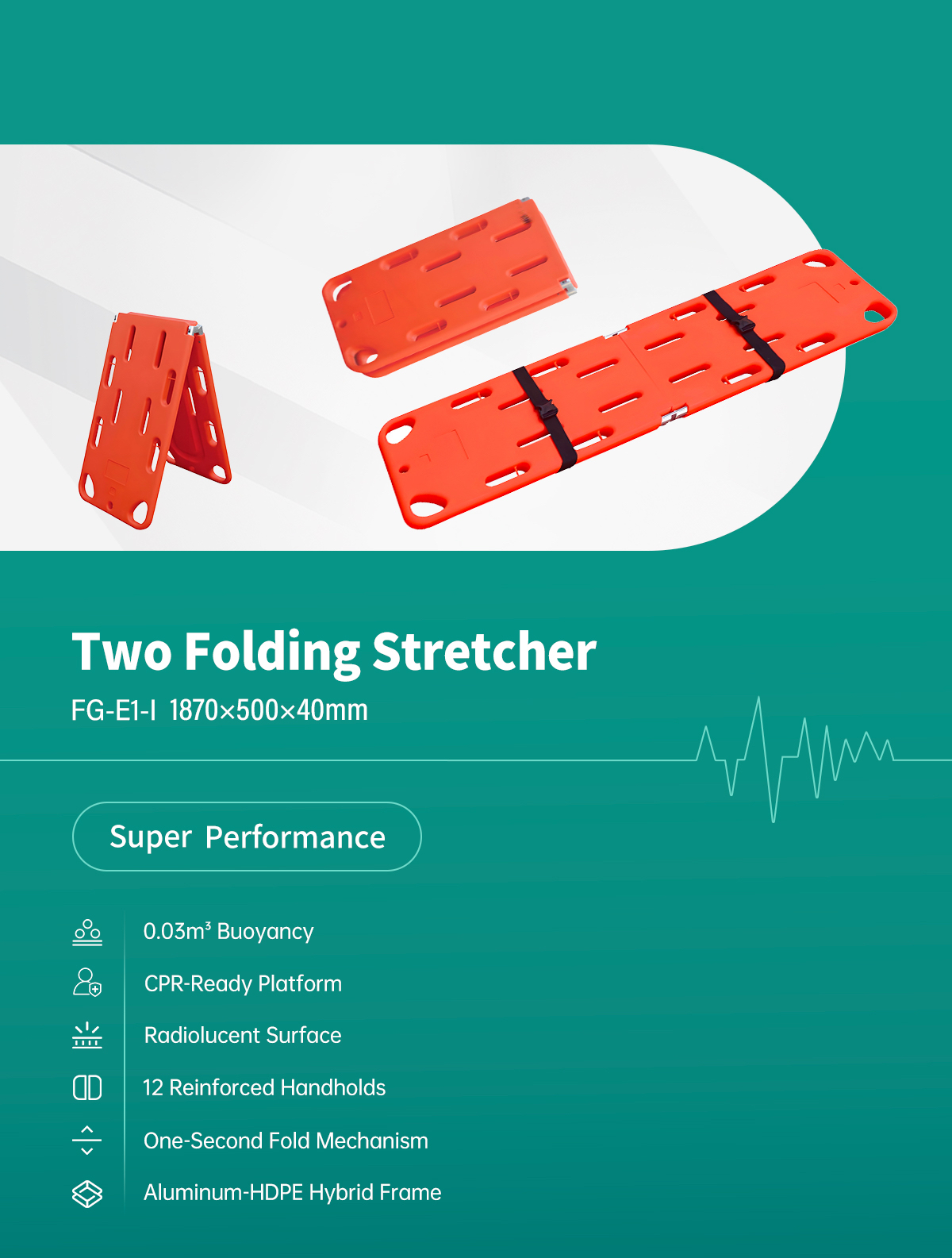

FG-E1-I Two Folding Stretcher

Core Advantage:

Hybrid aluminum-HDPE folding stretcher with 159kg load capacity, 50% space-saving storage, and full medical imaging transparency. Built for rapid deployment in confined-space rescues.

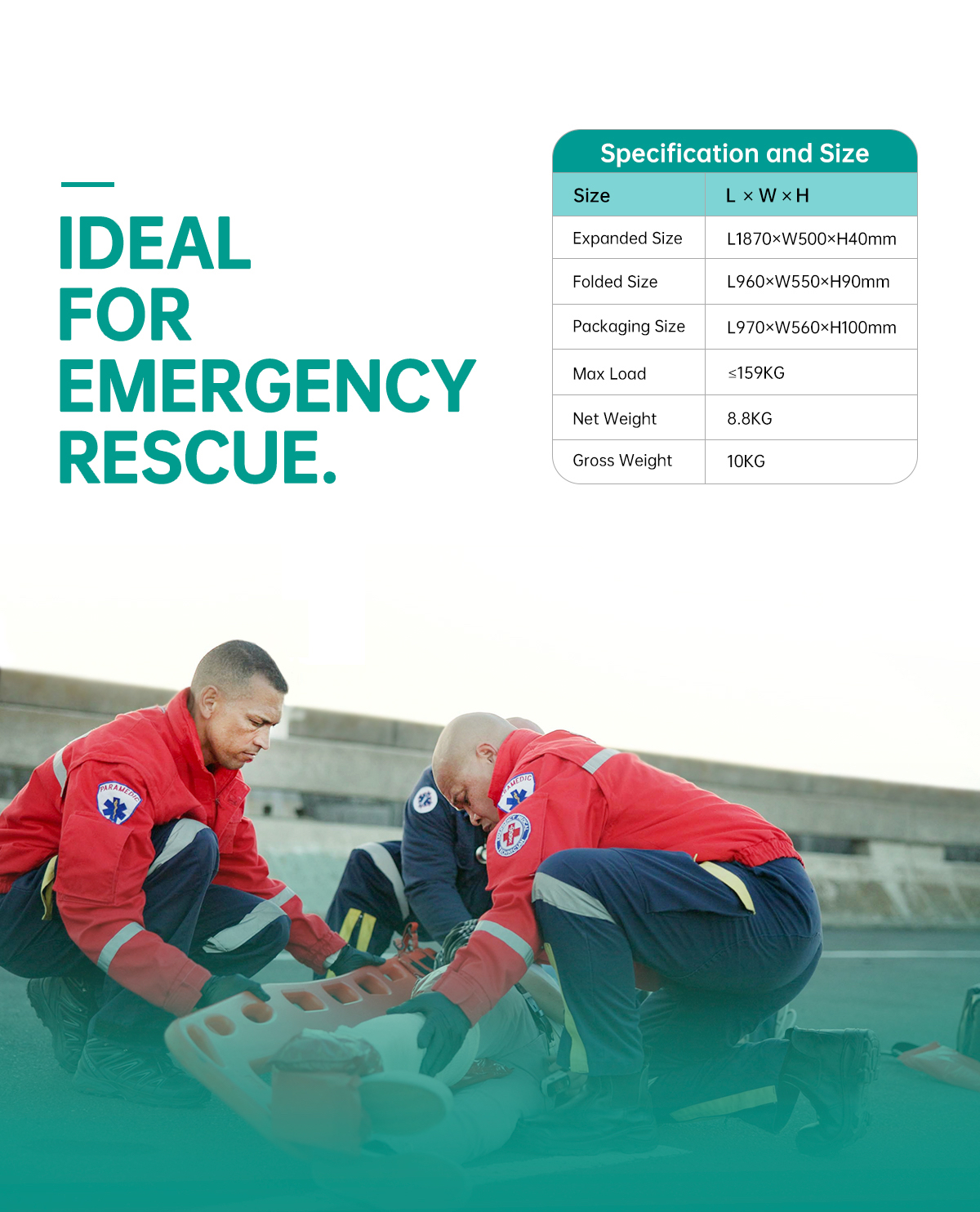

Product Specifications

Model: FG-E1-I (Foldable Design)

Aliases: Collapsible Spine Board, Tactical Rescue Litter

Deployed Size: 1870×500×40mm

Folded Size: 960×550×90mm

Packaged Size: 970×560×100mm

Max Load: ≤159kg

Net Weight: 8.8kg

Gross Weight: 10kg

Key Features

•Aluminum-HDPE Hybrid Frame: Combines aircraft-grade aluminum tubes with blow-molded polyethylene for 30% weight reduction vs. traditional models.

•One-Second Fold Mechanism: Transforms to 51% original size without tool disassembly.

•Radiolucent Surface: Zero metallic interference for X-ray/MRI/CT scans during transport.

•12 Reinforced Handholds: 360° access for vertical/horizontal lifts in narrow spaces (e.g., stairwells).

•CPR-Ready Platform: Locking joints maintain rigidity for chest compressions mid-transport.

•0.03m³ Buoyancy: Supports adult in water rescues.

Application Scenarios

Essential for helicopter EMS, urban search-and-rescue (USAR), boat emergencies, and mass-casualty triage. Passes through standard doorways (78cm) when folded.
